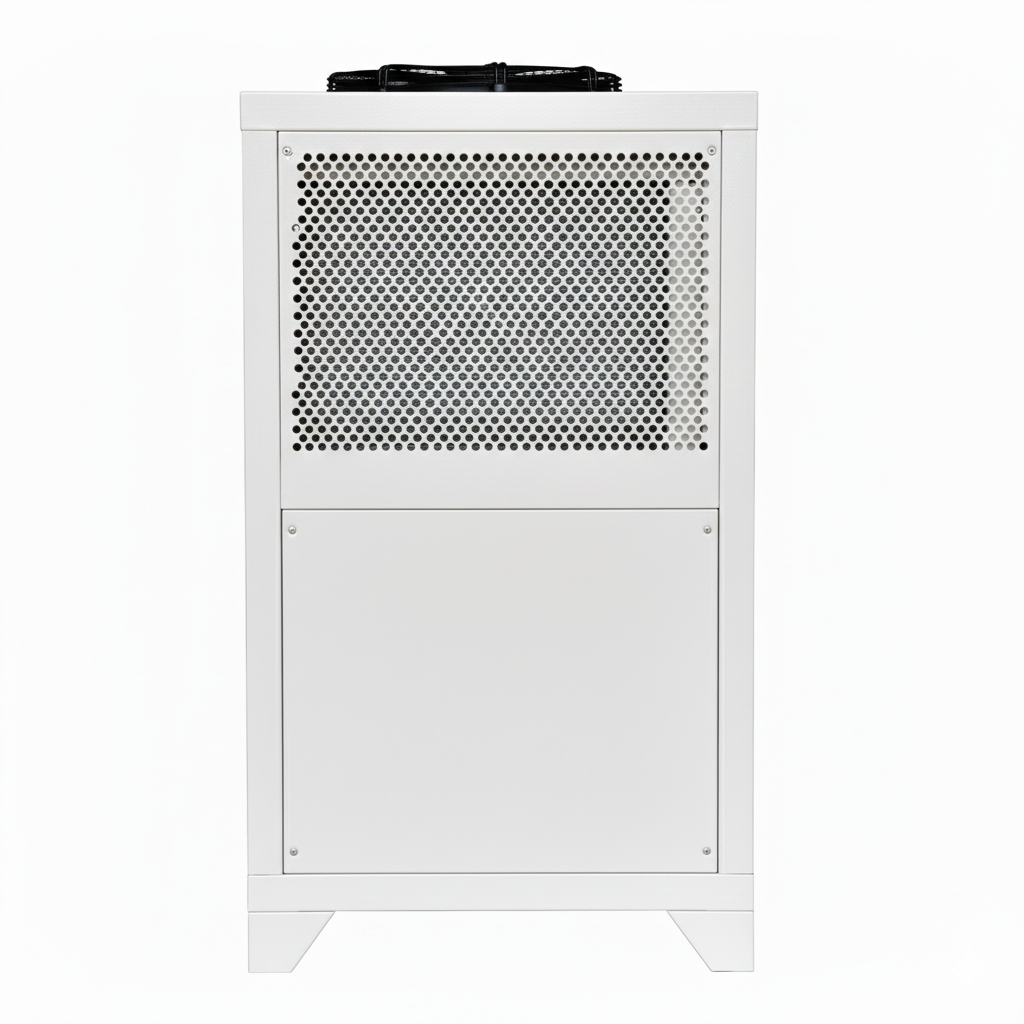

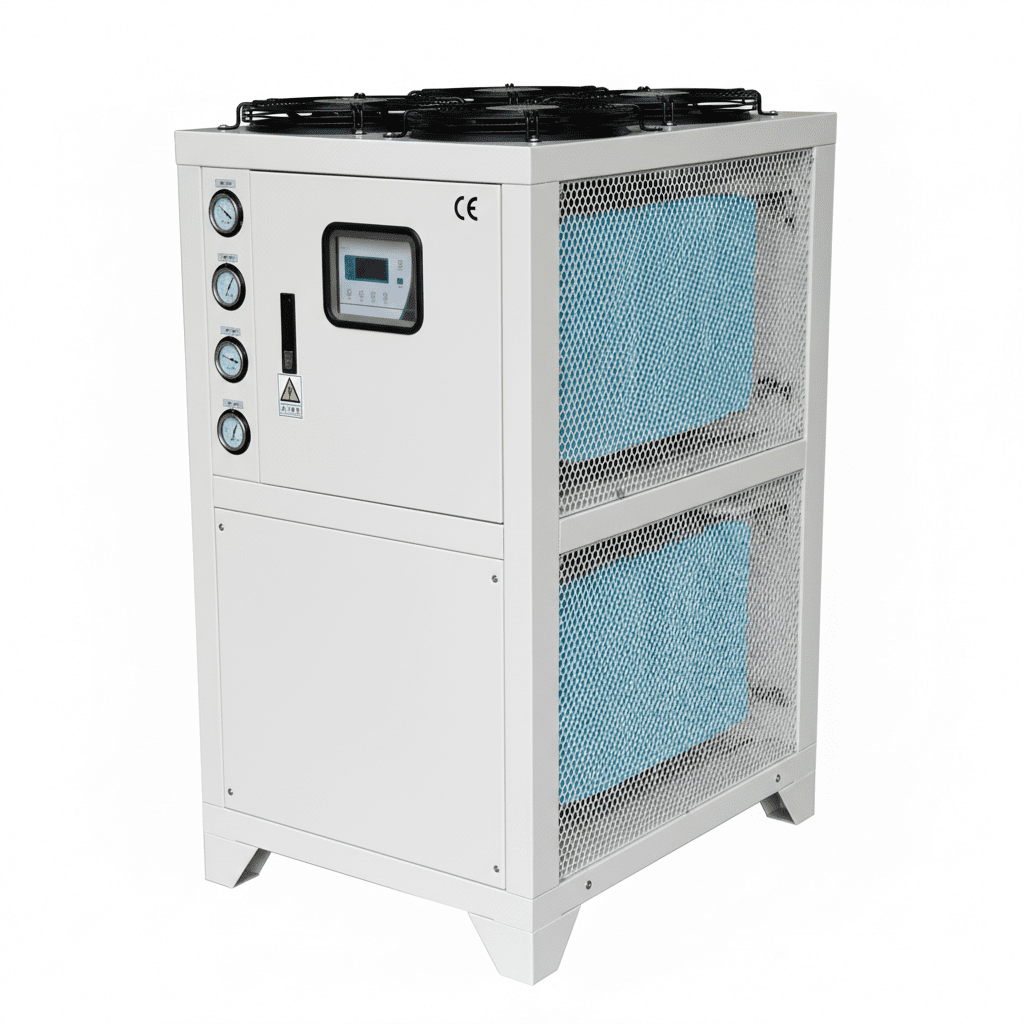

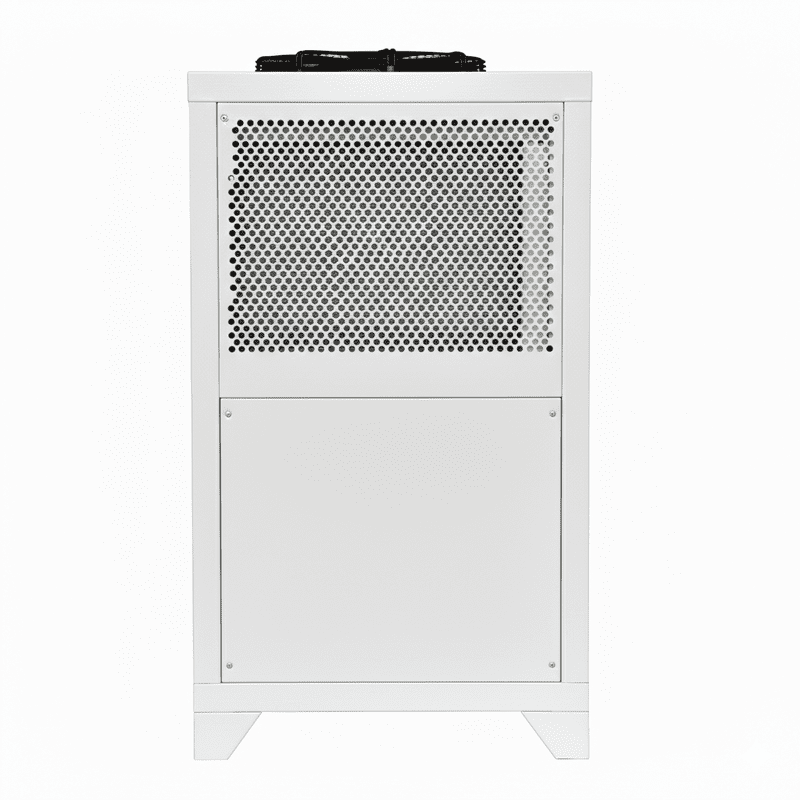

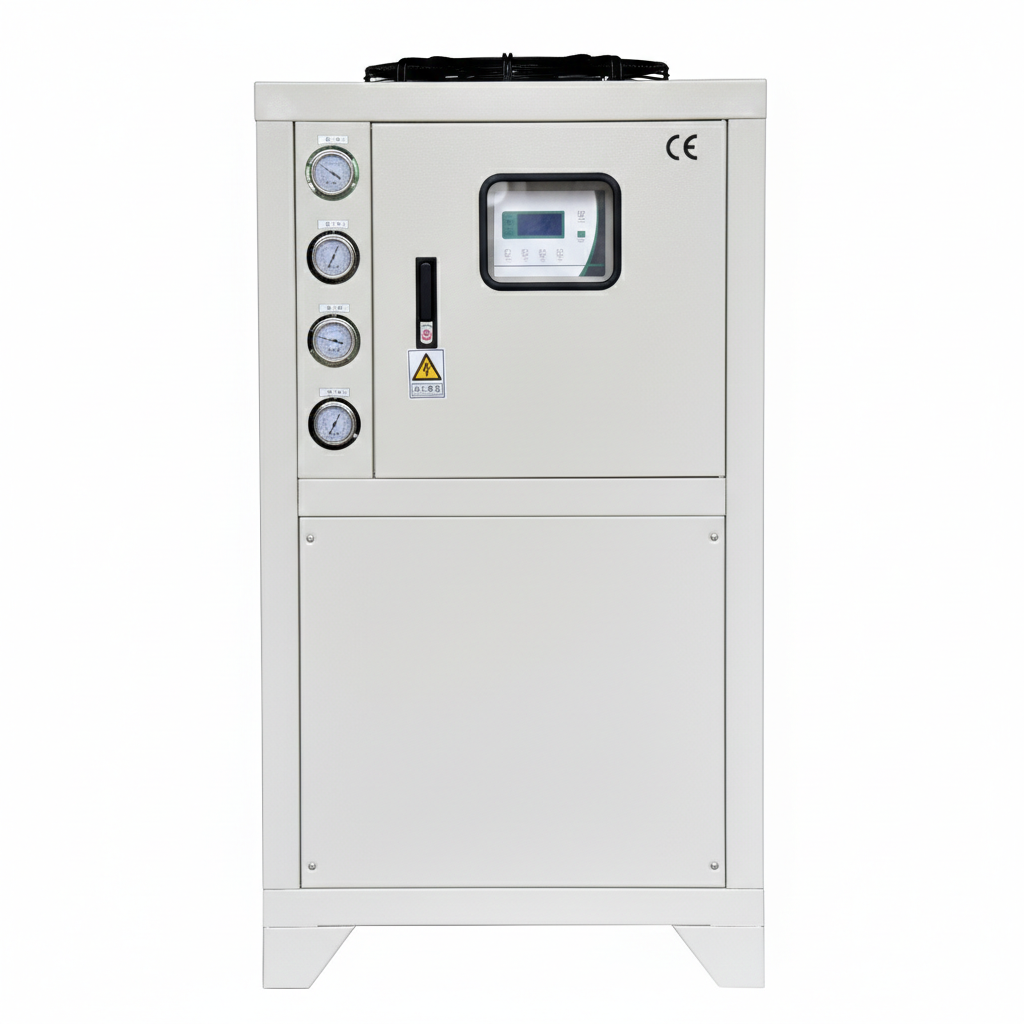

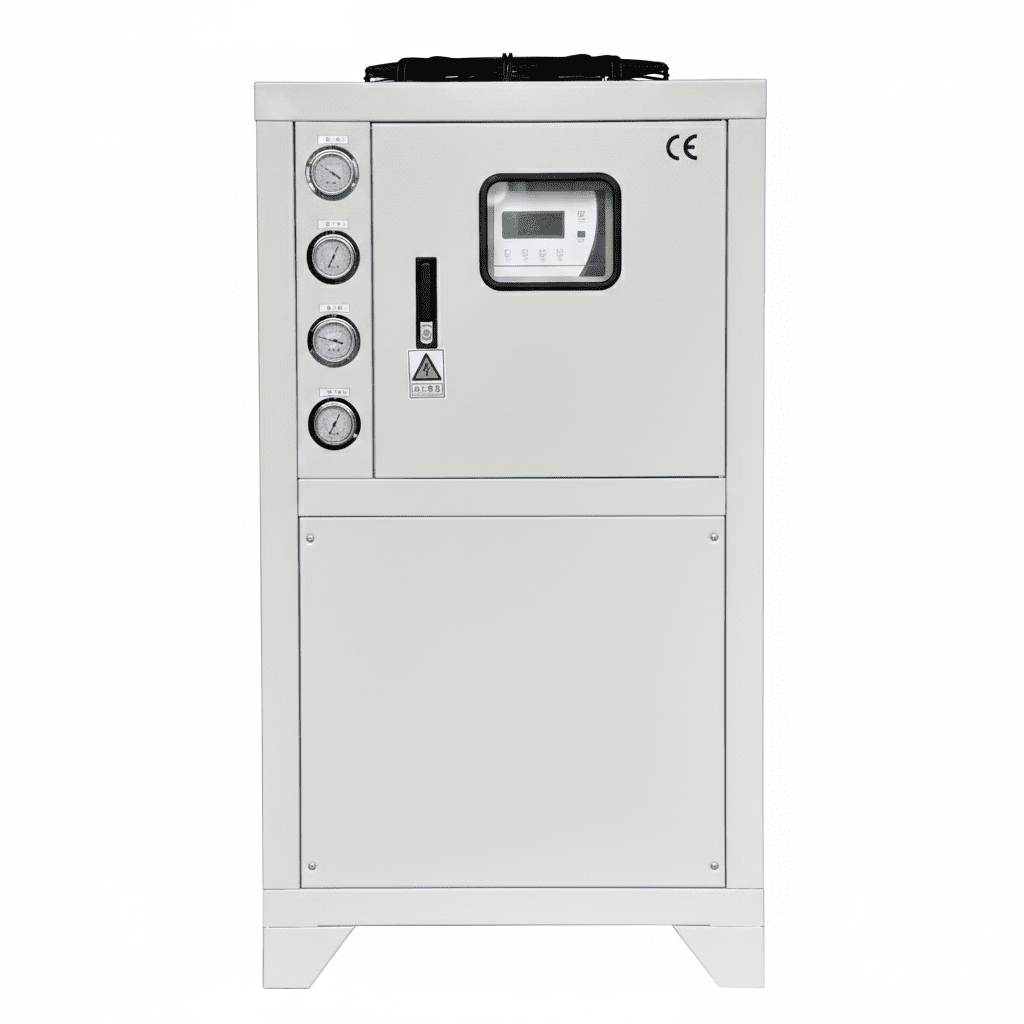

Laser Chiller โ Product Introduction
The Laser Chiller is a high-precision industrial cooling unit
specially designed for laser equipment thermal management.
It provides stable chilled water to effectively control laser temperature,
ensuring consistent output power, improved beam quality, and extended laser lifetime.
The unit integrates a high-efficiency compressor, air-cooled condenser,
precision temperature control system, water tank, circulation pump, and comprehensive
safety protections in one compact structure. It supports multiple refrigerants
and is suitable for continuous 24/7 industrial operation.
Application Fields
- ๐ฆ Fiber laser cutting, welding and marking machines
- ๐ฌ COโ, UV and solid-state laser systems
- ๐ญ CNC laser processing equipment
- ๐งช Laboratory laser devices and optical systems
- ๐ก Precision electronics and semiconductor laser cooling
- ๐ข OEM laser system integration and automation lines
Technical Specifications
| Model | 1/2A | 1A | 1.5A | 2A | 3A | 5A | 6A | 8AD | 10AD | 12AD | 15AD | 20AD |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Nominal Cooling Capacity kcal/h | 1419 | 2385 | 3264 | 4592 | 8677 | 13046 | 16193 | 21328 | 26092 | 32387 | 34572 | 49364 |
| kW | 1.25 | 2.2 | 3.5 | 4.9 | 6.78 | 12.46 | 14.86 | 21.12 | 24.92 | 29.32 | 36.02 | 50.6 |
| Input Power (kW) | 0.895 | 1.4 | 2.07 | 2.24 | 3.45 | 5.23 | 5.98 | 7.85 | 10.64 | 12.14 | 14.34 | 18.6 |
| Power Supply | 1PH 220V 50HZ / 60HZ | 3PH 380V~415V 50HZ / 60HZ | ||||||||||
| Refrigerant | R22 / R407C | |||||||||||
| Expansion Device | Capillary | Thermostatic Expansion Valve | ||||||||||
| Compressor Type | Hermetic Rotary | Hermetic Scroll | ||||||||||
| Compressor Motor Power (kW) | 0.45 | 0.89 | 1.52 | 1.73 | 2.8 | 4.12 | 4.87 | 3.3ร2 | 4.12ร2 | 4.87ร2 | 5.47ร2 | 8.1ร2 |
| Condenser | Finned copper coil + low noise axial fan | |||||||||||
| Air Volume (mยณ/h) | 750 | 1000 | 1500 | 2000 | 3000 | 5000 | 6000 | 8000 | 10000 | 12000 | 15000 | 20000 |
| Fan Power (kW) | 0.095 | 0.14 | 0.18 | 0.18 | 0.14ร2 | 0.18ร2 | 0.18ร2 | 0.25ร2 | 0.45ร2 | 0.45ร2 | 0.6ร2 | 0.8ร2 |
| Evaporator | Shell and tube (SS plate heat exchanger) | |||||||||||
| 7ยฐC Chilled Water Flow (mยณ/h) | 0.258 | 0.476 | 0.59 | 0.908 | 1.36 | 2.22 | 2.6 | 3.52 | 4.44 | 5.03 | 7.1 | 8.84 |
| Water Tank Volume (L) | 16 | 16 | 20 | 20 | 50 | 60 | 110 | 120 | 200 | 200 | 270 | 350 |
| Water Pipe Connection | 1/2 | 1/2 | 1/2 | 1/2 | 1 | 1 | 1 | 1-1/2 | 2 | 2 | 2 | 2-1/2 |
| Water Pump Power (kW) | 0.37 | 0.75 | 1.5 | 2.2 | ||||||||
| Pump Head (m) | 20 | |||||||||||
| Safety Devices | Compressor inner thermostat, unit overload relay, high & low pressure switch, freeze protection thermostat, reverse phase protection relay, discharge gas thermostat, flow switch | |||||||||||
| Dimensions (LรWรH mm) | 550ร350ร755 | 600ร400ร885 | 650ร520ร1030 | 650ร520ร1030 | 1030ร560ร1330 | 1030ร560ร1330 | 1170ร610ร1390 | 1350ร680ร1520 | 1550ร760ร1680 | 1550ร760ร1680 | 1830ร850ร1870 | 2010ร950ร1990 |
| Net Weight (kg) | 45 | 52 | 75 | 85 | 132 | 165 | 183 | 265 | 345 | 382 | 580 | 650 |
* Design conditions: chilled water inlet/outlet temperature 12ยฐC / 7ยฐC;
cooling air inlet/outlet temperature 30ยฐC / 38ยฐC.
Note: Cooling capacity of R407C unit will be approx. 5% lower than R22.
Specifications are subject to change without prior notice.
