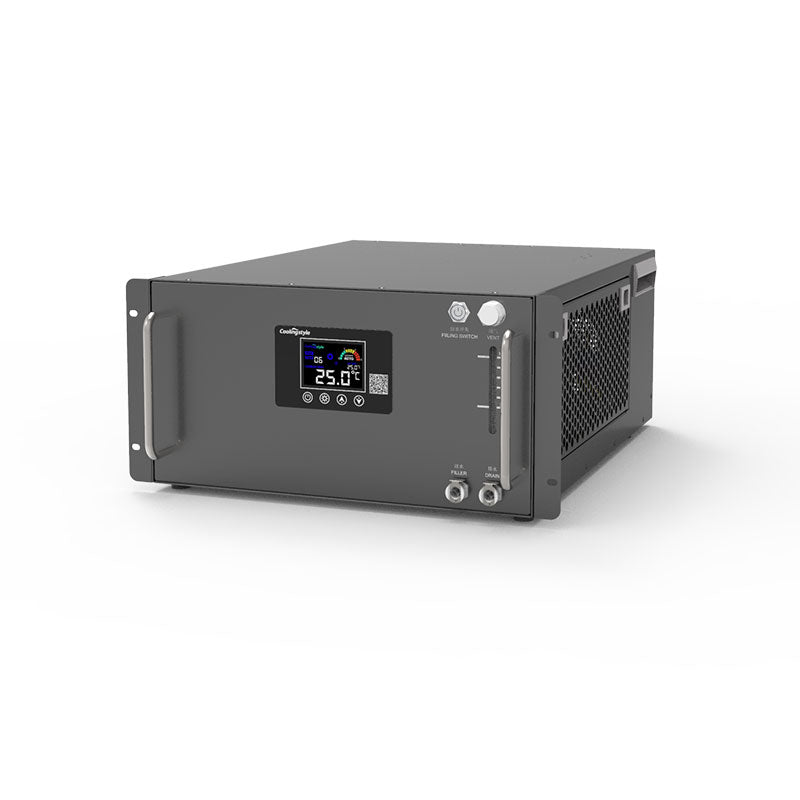

What Is a Modular Chiller System?

Overview: Why Modular Chiller Systems Are Reshaping Industrial Cooling

In global manufacturing, data infrastructure, food processing, pharmaceuticals, plastics, and HVAC-heavy commercial buildings, cooling reliability is no longer just an engineering concern—it is a direct business risk variable. As utility prices rise, sustainability audits tighten, and uptime expectations become unforgiving, buyers are moving away from oversized, monolithic cooling plants and toward flexible, scalable architectures. That shift is exactly where the modular chiller system stands out.

A modular chiller system is a cooling solution composed of multiple independent chiller units connected through a common hydraulic and control framework. Instead of relying on one large machine to handle the full cooling load, the system stages several smaller modules that can operate in sequence, in parallel, or in optimized combinations based on real-time demand. This design gives international buyers a major strategic advantage: capacity can grow in step with production expansion, while redundancy and part-load efficiency improve significantly.

For procurement managers and plant engineers, this matters because cooling systems are often expected to perform under changing process conditions: seasonal ambient shifts, fluctuating product lines, variable occupancy, and expansion phases that are difficult to forecast precisely. A modular design addresses these uncertainties by giving operators fine control over tonnage deployment, maintenance windows, and power consumption profiles.

If you are evaluating a Chiller strategy for a new project or retrofit, understanding how modular systems work will help you avoid one of the most common design mistakes in industrial cooling: paying for full-load performance while operating at partial load most of the year.

Process Pain Points: Why Traditional Cooling Architectures Struggle

Before deciding on system architecture, it is critical to diagnose the pain points that frequently undermine performance in conventional central chiller plants. Many facilities still run fixed-capacity logic designed for stable demand profiles that no longer exist. The result is hidden inefficiency, operational stress, and rising lifecycle cost.

Load Volatility and Low Part-Load Efficiency

Most facilities do not run at peak cooling load continuously. In practice, many plants operate at 40–70% of design load for long periods. A single large chiller can lose efficiency under these conditions, especially when frequent start-stop cycles occur. This mismatch often causes:

• Higher kWh per ton of cooling produced
• Compressor wear due to unstable cycling
• Poor leaving water temperature stability for sensitive processes

Single-Point Failure Risk

In traditional configurations, one major failure can cascade into broad production downtime. In process-critical sectors such as electronics, pharma, and cold chain manufacturing, thermal instability can cause batch rejection, equipment alarm trips, or even compliance violations.

Difficult Capacity Planning for Growing Facilities

Expansion uncertainty is a global challenge. Should you buy a large system now for future production, or install smaller equipment and risk under-capacity later? Over-sizing creates low-load inefficiency and unnecessary capital tie-up. Under-sizing forces urgent retrofits and production constraints. Modular architecture reduces this tradeoff by enabling phased installation.

Maintenance Windows That Disrupt Output

Planned service on monolithic plants can demand partial shutdown or full process rescheduling. In contrast, modular systems can isolate one unit while others maintain cooling continuity. This is especially beneficial in facilities running multi-shift or near-24/7 schedules.

Space, Logistics, and Retrofit Constraints

Many retrofit projects face limited access routes, rooftop load limits, or tight mechanical rooms. Transporting and installing one large chiller may be complicated and expensive. Smaller modules are generally easier to move, stage, and integrate into constrained sites.

How a Modular Chiller System Works: Engineering Logic Behind the Solution

A modular chiller system combines mechanical, hydraulic, and digital control layers into one coordinated platform. Each module has its own refrigeration circuit (often with independent compressor and heat exchangers), while a supervisory controller orchestrates operation for best efficiency and stability.

Core Working Principle: Demand-Matched Staging

The heart of modular operation is load matching. Sensors monitor supply water temperature, return water temperature, flow rate, ambient conditions, and sometimes process-level thermal signals. Based on these inputs, the controller decides:

• How many modules should run now
• Which module should start first (runtime balancing logic)
• How to sequence compressor loading for best instantaneous COP/EER
• When to stop modules without destabilizing outlet temperature

This dynamic response is a major reason modular systems outperform static plants during partial-load hours.

Hydraulic Coordination and Temperature Stability

In well-designed modular systems, chilled water pumps, bypass strategies, and control valves are engineered to maintain sufficient flow through active modules while avoiding short cycling or temperature hunting. In advanced projects, variable-frequency drives (VFDs) are integrated to reduce pump energy and tighten control band.

Temperature stability is especially important for molding machines, laser equipment, fermentation lines, coating processes, and medical production environments where thermal drift can reduce yield.

Redundancy by Design, Not by Accident

Modular systems naturally support N+1 thinking. For example, if your process needs 900 kW nominal load, you may design with four modules at 300 kW each. Under normal conditions, three modules cover demand and one remains standby or rotates for runtime equalization. This approach improves operational resilience without requiring one giant backup machine.

Energy Performance in Real Operating Profiles

Buyers often compare chillers using nominal full-load specs only. However, real annual cost depends heavily on integrated part-load performance. Modular platforms typically deliver better seasonal efficiency because:

• Only required modules run, avoiding inefficient low-load operation of oversized equipment
• Multiple compressors can be modulated in finer increments
• Control systems can prioritize high-efficiency modules first
• Night and shoulder-season operation benefits from lower active capacity blocks

For guidance on selecting the right Chiller strategy, lifecycle simulation (rather than nameplate comparison) is strongly recommended.

Digitalization, Monitoring, and Predictive Maintenance

Modern modular systems frequently support BMS/SCADA integration, remote diagnostics, alarm hierarchy, trend logging, and cloud analytics. Instead of reactive repair, maintenance can be scheduled from indicators such as compressor current behavior, approach temperature shift, and abnormal pressure ratios.

Case Analysis: Practical Modular Chiller Applications Across Industries

The value of modular design becomes clearer in real project contexts. The following case analyses are representative scenarios seen in international procurement and plant upgrade programs.

Case One: Electronics Manufacturing Campus Expansion

An electronics manufacturer in Southeast Asia planned a two-stage expansion over 36 months. Initial process load required approximately 650 kW cooling, with projected growth to 1,200+ kW. Traditional options forced a difficult decision between over-investing upfront or risking capacity bottlenecks later.

The selected modular solution deployed three units first, then added two matching modules in phase two. The control platform balanced runtime to reduce wear concentration. During phase-one operation, only required modules ran, maintaining tighter outlet control while reducing power draw versus a comparable oversized central unit.

• Business benefit: staged CAPEX aligned with actual production ramp
• Operational benefit: no major cooling shutdown during expansion tie-in
• Risk benefit: one-module maintenance did not interrupt line continuity

Case Two: Food Processing Plant with Strict Hygiene and Continuous Load Fluctuation

A food plant with batch and packaging lines experienced sharp cooling demand swings between cleaning cycles, processing windows, and storage transitions. Legacy cooling equipment frequently short-cycled, and temperature drift impacted consistency in certain thermal-sensitive stages.

A modular plant with variable staging was introduced, coupled with improved hydraulic balancing and control setpoint logic. The outcome was more stable chilled water delivery and reduced compressor stress events.

Case Three: Data Infrastructure Retrofit in Space-Constrained Urban Site

A metropolitan data facility required cooling upgrade but could not accept long downtime or major structural rework. Large-unit replacement was constrained by crane access and roof loading limits.

The project used modular units delivered in manageable sections, installed in sequence while existing cooling remained operational. After commissioning, modules were staged according to IT load profile and ambient temperature. The operator gained finer redundancy granularity and easier service scheduling.

For similar retrofit conditions, modular Chiller deployment can significantly lower installation complexity and business interruption risk.

Case Four: Pharmaceutical Facility Requiring Compliance-Friendly Reliability

In regulated environments, temperature excursions can trigger deviation management procedures, documentation burden, and possible product impact. A pharmaceutical site upgraded to modular chilling with layered alarms and historian integration for audit trails.

The system supported controlled runtime rotation and preventive maintenance planning around campaign schedules. This helped the team maintain validated environmental conditions while reducing unplanned interventions.

Summary: When Modular Chiller Systems Are the Right Strategic Choice

Modular chiller systems are particularly effective where load variability, uptime demands, and phased growth intersect. Compared with single large-unit strategies, they offer:

• Scalable capacity without heavy over-sizing penalties
• Higher practical efficiency under real part-load operation
• Improved resilience through distributed cooling assets
• Simpler maintenance planning with reduced process disruption
• Retrofit adaptability in constrained or active facilities

For global buyers, the best procurement outcome comes from evaluating modular solutions as a lifecycle system—not just equipment pieces. Focus on control intelligence, hydraulic design quality, service ecosystem, data visibility, and expansion compatibility. If your organization is comparing options, start with a complete profile: hourly load map, redundancy target, site constraints, and energy tariff structure. That framework will reveal whether a modular Chiller architecture can unlock long-term operational and financial gains.
